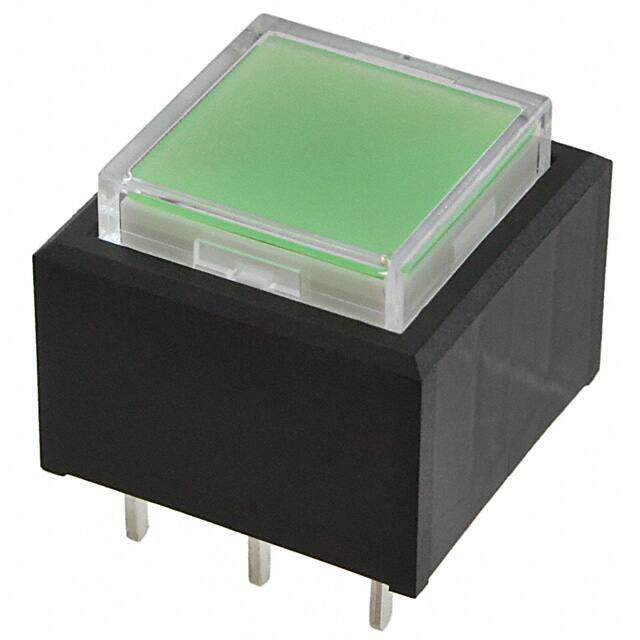

UB25SKW035F-JF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches DPDT ON-(ON) 5A ILLUM. GREEN SQUARE
PDF
/
Buying Options
Total Price: USD $10.3
Unit Price: USD $10.3048
≥1 USD $10.3048
≥10 USD $9.30776
≥100 USD $8.859488
≥500 USD $8.411568
≥1000 USD $8.112984
≥3000 USD $7.615238
Inventory: 389
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 15.24mm
Technical
Illumination Color Green
Illumination Type LED
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 10,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1VDC
Color - Actuator/Cap Clear (Green Filter/Diffuser)
Switch Function On-Mom
Circuit DPDT
Actuator Type Square, Button
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 5A
Reach Compliance Code unknown
Depth 15.24mm
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
