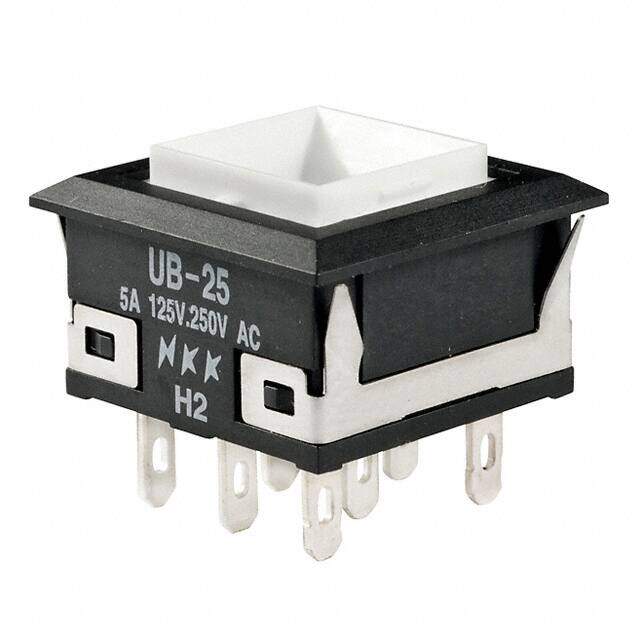

UB25KKW016B
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Inventory: 3969
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Illumination Color White
Illumination Type Illuminated, LED
Mechanical Life 1,000,000 Cycles
Electrical Life 10,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 2.9VDC
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 5A
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 11 Weeks
