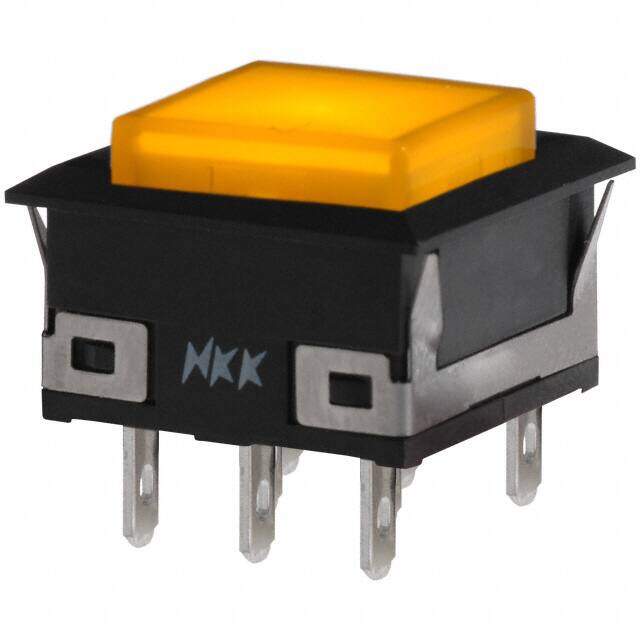

UB25KKW015D-DD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $11.07
Unit Price: USD $11.069547
≥1 USD $11.069547
≥10 USD $10.442966
≥100 USD $9.851862
≥500 USD $9.294204
≥1000 USD $8.768117
Inventory: 1266
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 12mm
Length 17.8mm
Technical
Illumination Color Orange
Illumination Type Illuminated, LED
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 10,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Amber
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-Mom
Circuit DPDT
Actuator Type Square, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 5A
Reach Compliance Code unknown
Depth 17.8mm
Orientation Vertical
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Number of Positions 2
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
