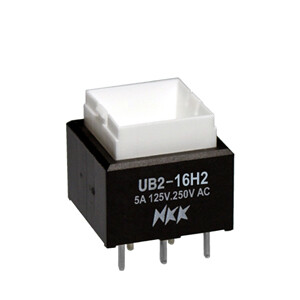

UB216SKW036G
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches LOW PROFILE PSHBTTN ILLMNTD/PC AND SLDR
PDF
/
Inventory: 952
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Package / Case 125
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series UB2
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Illumination Voltage (Nominal) 3.6VDC
Illumination Type, Color LED, Blue
Electrical Life 10,000 Cycles
Mechanical Life 200,000 Cycles
Illumination Type LED
Illumination Color Blue
Life (Cycles) 10000 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
