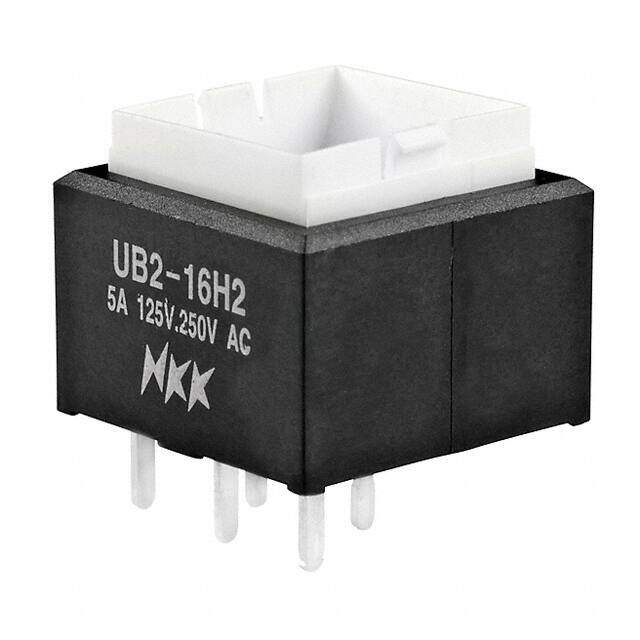

UB216SKW036CF
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $15.65
Unit Price: USD $15.6464
≥1 USD $15.6464
≥10 USD $14.02456
≥100 USD $13.408384
≥500 USD $12.714768
≥1000 USD $12.252416
≥3000 USD $11.481782
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Illumination Color Green, Red
Illumination Type Illuminated, LED
Mechanical Life 200,000 Cycles
Electrical Life 10,000 Cycles
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 2.1 3.5VDC
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 5A
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Terminal Finish GOLD
Type Standard, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series UB2
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Package / Case 125
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 8 Weeks
