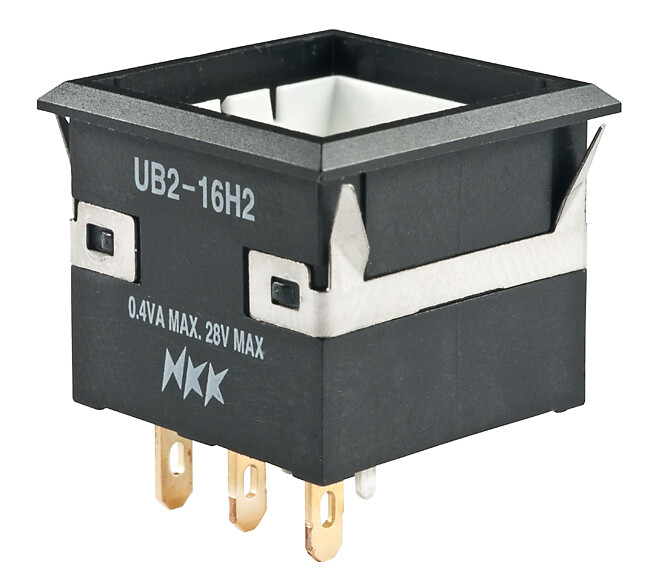

UB216KKG016F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches LOW PROFILE PSHBTTN ILLMNTD/PC AND SLDR
PDF
/
Inventory: 5718
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Life (Cycles) 200000 cycles
Illumination Color Green
Illumination Type LED
Mechanical Life 200,000 Cycles
Electrical Life 200,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 3.5VDC
Panel Cutout Dimensions Square - 17.40mm2
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style Solder Lug
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB2
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
