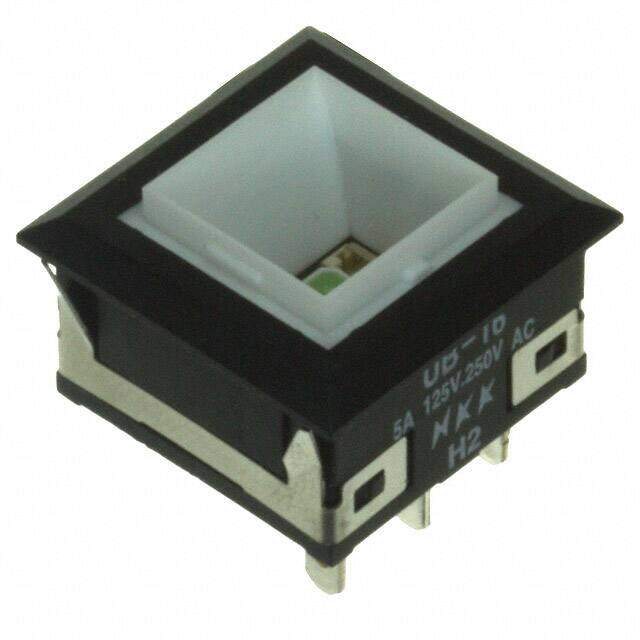

UB16KKW016F
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $21.13
Unit Price: USD $21.1288
≥1 USD $21.1288
≥10 USD $19.19016
≥100 USD $18.327936
≥500 USD $17.357648
≥1000 USD $16.71076
≥3000 USD $15.632672
Inventory: 67
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Illumination Color Green
Illumination Type Illuminated, LED
Mechanical Life 200,000 Cycles
Electrical Life 10,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 3.2VDC
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 5A
Reach Compliance Code unknown
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 11 Weeks
