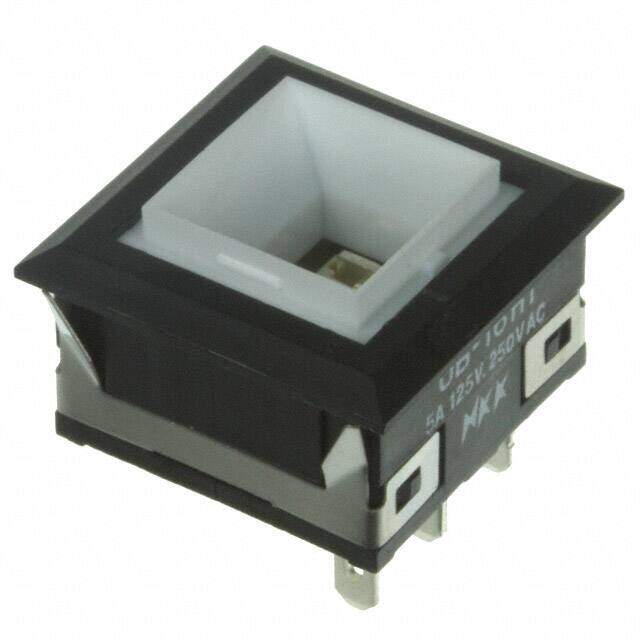

UB16KKW015F
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $8.7
Unit Price: USD $8.7032
≥1 USD $8.7032
≥10 USD $7.84256
≥100 USD $7.514496
≥500 USD $7.144896
≥1000 USD $6.857488
≥3000 USD $6.44681
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series UB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Reach Compliance Code unknown
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Square - 16.20mm2
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Electrical Life 10,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current Rating 5A
Illumination Type Illuminated, LED
Illumination Color Green
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
