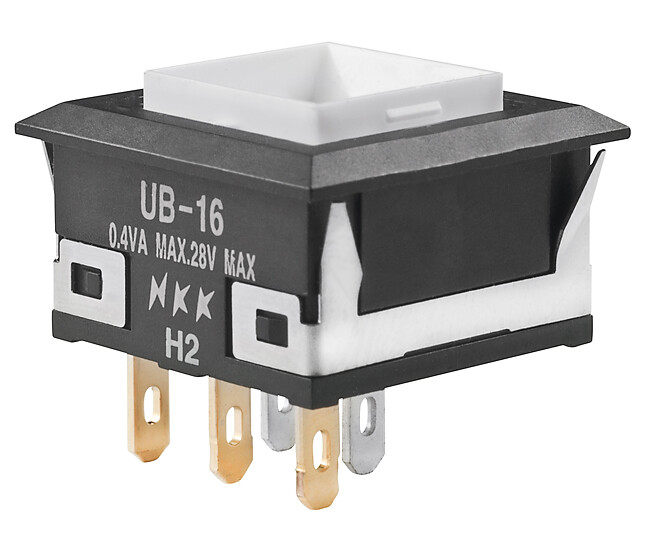

UB16KKG016G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches LOW PROFILE PSHBTTN ILLMNTD/PC AND SLDR
PDF
/
Inventory: 3464
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series UB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Square - 16.20mm2
Illumination Voltage (Nominal) 2.9VDC
Illumination Type, Color LED, Blue
Electrical Life 200,000 Cycles
Mechanical Life 200,000 Cycles
Illumination Type LED
Illumination Color Blue
Life (Cycles) 200000 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
