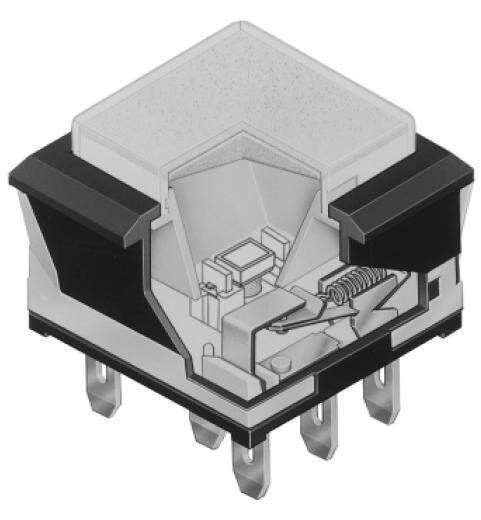

UB15SKW036B-JB image
Favorite
UB15SKW036B-JB image
Favorite

UB15SKW036B-JB

NKK Switches
RoHS
RoHS RoHS compliant
Package 125
Category Switches / Pushbutton Switches
Description Illuminated Pushbutton Switches SPDT ON-ON WHT LED SQ BUTTON
PDF
/
Inventory: 8183
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Package / Case 125
Housing Material Polyamide

Technical

Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series UB
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 2.9VDC
Illumination Type, Color LED, White
Electrical Life 10,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color White

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
