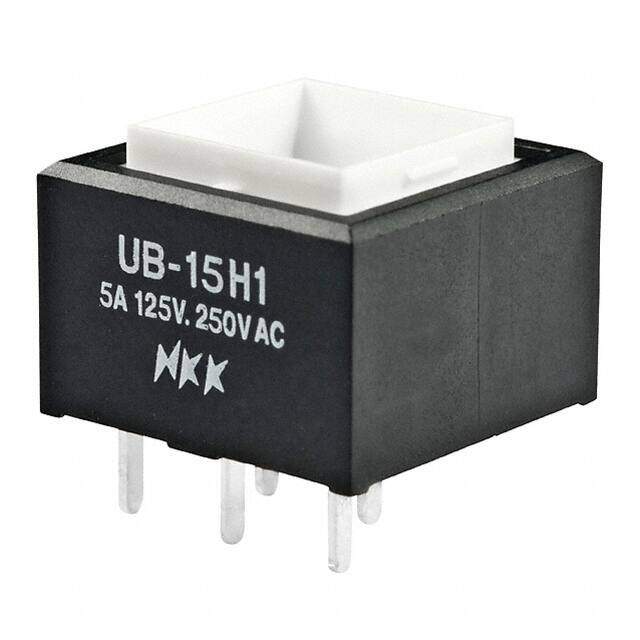

UB15SKW035D image
Favorite
UB15SKW035D image
Favorite

UB15SKW035D

NKK Switches
RoHS
RoHS RoHS compliant
Package 125
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Inventory: 2926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Silver
Mount Through Hole
Mounting Type Through Hole
Package / Case 125
Housing Material Polyamide

Technical

Operating Temperature -25°C~50°C
Packaging Tray
Published 2011
Series UB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Orientation Vertical
Reach Compliance Code unknown
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Amber
Electrical Life 10,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Orange
Life (Cycles) 1e+06 cycles

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
