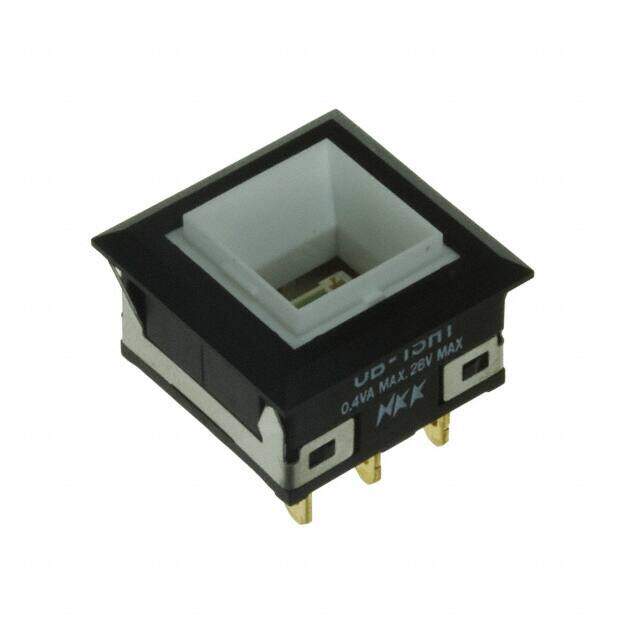

UB15KKG015F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $8.95
Unit Price: USD $8.9496
≥1 USD $8.9496
≥10 USD $8.06344
≥100 USD $7.726048
≥500 USD $7.345888
≥1000 USD $7.050384
≥3000 USD $6.62823
Inventory: 108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2006
Series UB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 16.20mm2
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Green
Life (Cycles) 1e+06 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
