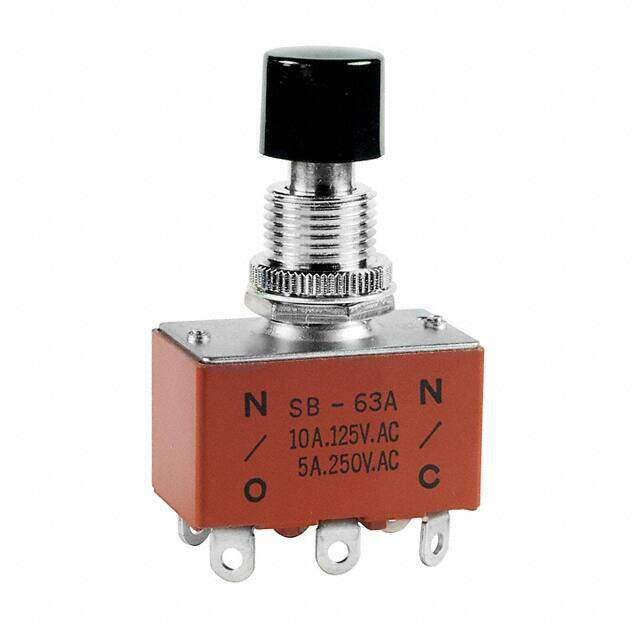

SB63A
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
Pushbutton Switches DPDT ON(ON) LCKDWN 10A BLK CAP LUG
PDF
/
Buying Options
Total Price: USD $12.11
Unit Price: USD $12.1088
≥1 USD $12.1088
≥10 USD $10.93664
≥100 USD $10.410048
≥500 USD $9.883632
≥1000 USD $9.532776
≥3000 USD $8.94791
Inventory: 39
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper, Silver
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 125
Housing Material Resin
Actuator Material Polybutylene
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series SB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Additional Feature ACTUATOR CAP, LOCKDOWN
Current Rating (Amps) 10A AC
Orientation Vertical
Depth 18.6mm
Current Rating 10A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Breadth 18.5928 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Contact Current Rating 10A
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Contact Function ON-(ON)
Life (Cycles) 10000 cycles
Dimensions
Length 31.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
