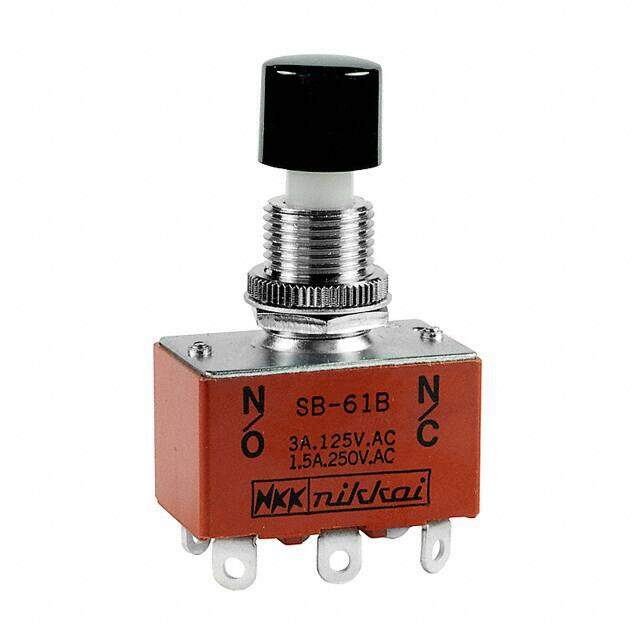

SB61B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $7.14
Unit Price: USD $7.1368
≥1 USD $7.1368
≥10 USD $6.41256
≥100 USD $6.116704
≥500 USD $5.853584
≥1000 USD $5.623464
≥3000 USD $5.32745
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Polybutylene
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2012
Series SB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Additional Feature ACTUATOR CAP
Current Rating (Amps) 3A AC
Orientation Vertical
Depth 18.6mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Breadth 18.5928 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 1.5A
Contact (AC) Max Rating R Load 1.5A@250VAC
Contact Function ON-(ON)
Bushing Diameter 0.492 inch
Dimensions
Length 31.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
