SB4011NOM-2G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

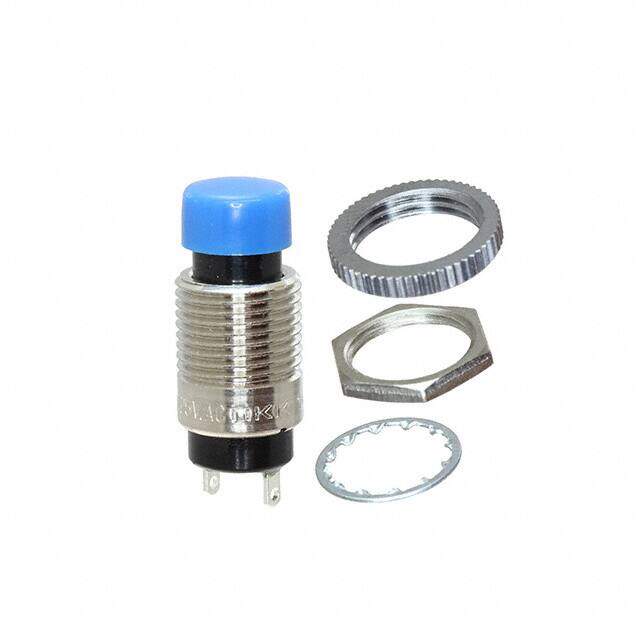

Pushbutton Switches SPST NO Metric Thrd Blk Plunge w/Blu Cap
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7144
≥1 USD $6.7144
≥10 USD $6.04912
≥100 USD $5.744992
≥500 USD $5.501936
≥1000 USD $5.319424
≥3000 USD $5.045885
Inventory: 45
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Illumination Type Illuminated
Mechanical Life 30,000 Cycles
Throw Configuration SPST
Electrical Life 10,000 Cycles
Color - Actuator/Cap Blue
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 2A
Reach Compliance Code not_compliant
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series SB40
Published 2015
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 14 Weeks
