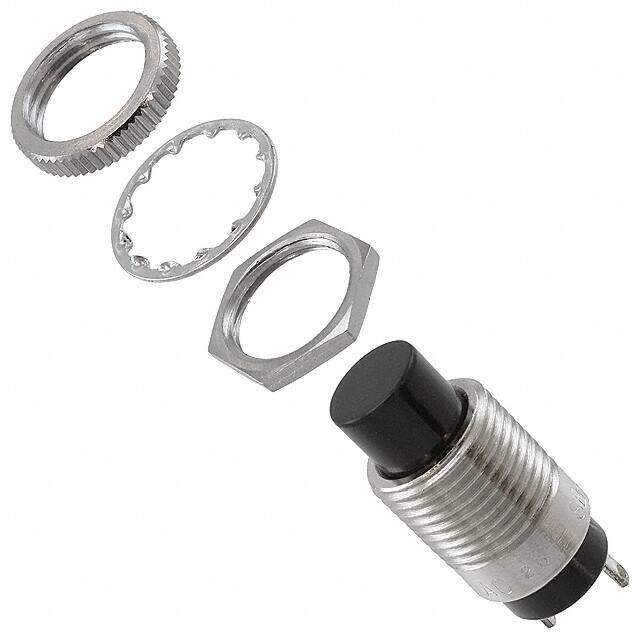

SB4011NOM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPST OFF-(ON) STRT
PDF
/
Buying Options
Total Price: USD $6.17
Unit Price: USD $6.1688
≥1 USD $6.1688
≥10 USD $5.55368
≥100 USD $5.27472
≥500 USD $5.051376
≥1000 USD $4.884
≥3000 USD $4.632778
Inventory: 823
Minimum: 1
-
+
Technical Details
Technical
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 12.50mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Electrical Life 10,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 30V
Mechanical Life 30,000 Cycles
Contact Current Rating 3A
Illumination Type Illuminated
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2007
Series SB40
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC 2A DC
Orientation Vertical
Depth 12mm
Reach Compliance Code not_compliant
Dimensions
Length 12mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Phenolic, Resin
