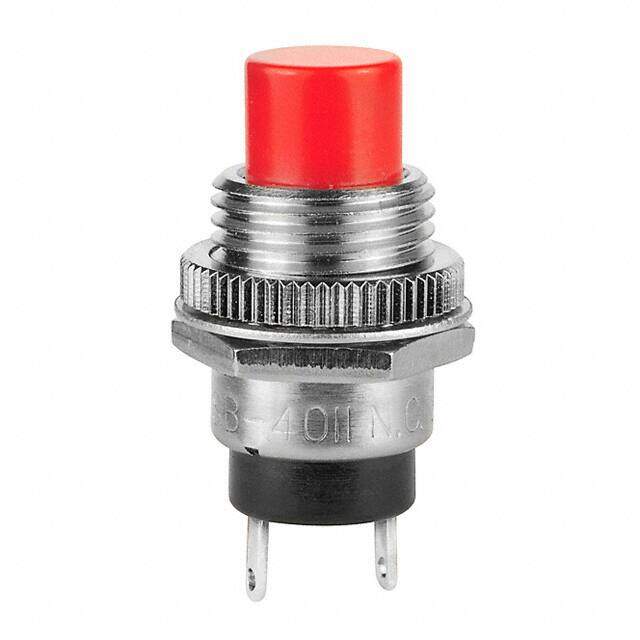

SB4011NCMC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 3A 125V
PDF
/
Buying Options
Total Price: USD $4.65
Unit Price: USD $4.646798
≥1 USD $4.646798
≥10 USD $4.383767
≥100 USD $4.135637
≥500 USD $3.901545
≥1000 USD $3.680701
Inventory: 6300
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 12mm
Technical
Mechanical Life 30,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 10,000 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 2A
Reach Compliance Code not_compliant
Depth 12mm
Orientation Vertical
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 125V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series SB40
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Actuator Material Phenolic, Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
