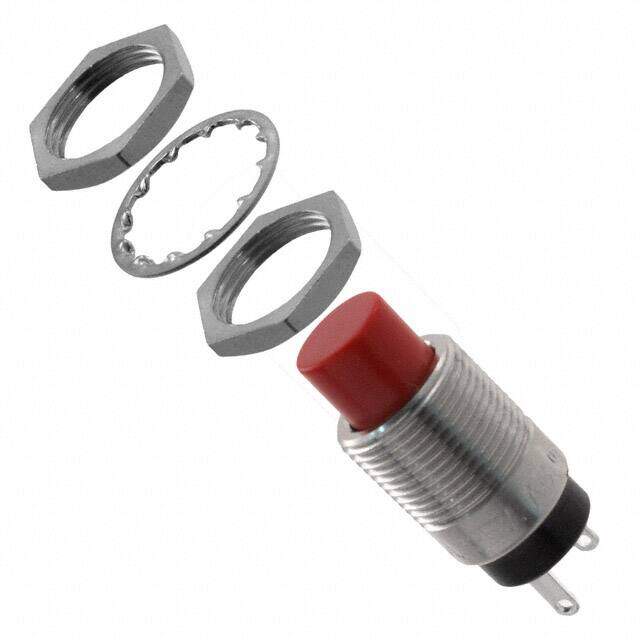

SB4011NCHC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 3A 125V
PDF
/
Buying Options
Total Price: USD $4.76
Unit Price: USD $4.7608
≥1 USD $4.7608
≥10 USD $4.24776
≥100 USD $4.020896
≥500 USD $3.876576
≥1000 USD $3.690984
≥3000 USD $3.526054
Inventory: 175
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Phenolic, Resin
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2011
Series SB40
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC 2A DC
Orientation Vertical
Depth 12mm
Reach Compliance Code not_compliant
Current Rating 2A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.50mm Dia
Color - Actuator/Cap Red
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 30V
Mechanical Life 30,000 Cycles
Contact Current Rating 3mA
Dimensions
Length 12mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
