SB282
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description

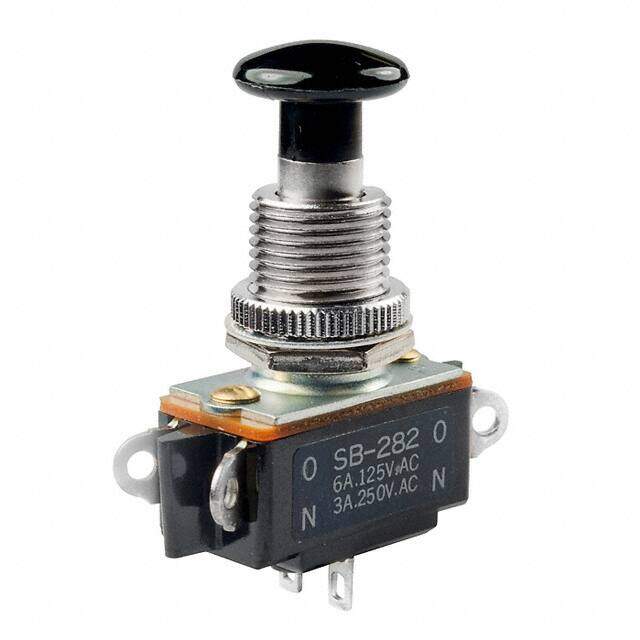

SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 2782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2005
Series SB
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Additional Feature ACTUATOR CAP
Current Rating (Amps) 6A AC
Orientation Vertical
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 35.4076mm
Body Breadth 13.208 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 200000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(AC)-Max 250V
Actuator Travel 1.4986 mm
Bushing Length 0.551 inch
Bushing Diameter 0.492 inch
Dimensions
Body Height 15.9766mm
Actuator Length 0.583 inch
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
