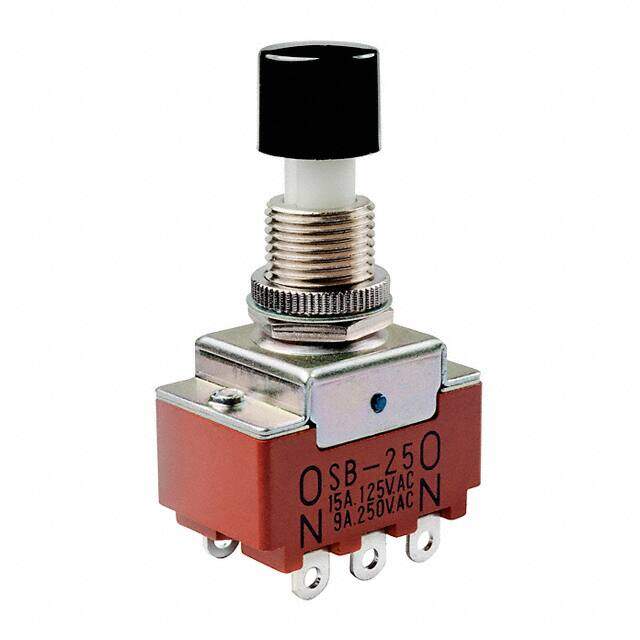

SB25
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 15A 125V
PDF
/
Inventory: 2553
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Series SB
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Terminal Finish Tin (Sn)
Additional Feature ACTUATOR CAP, UL & CSA
Current Rating (Amps) 15A AC
Orientation Vertical
Current Rating 15A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 31.1912mm
Body Breadth 19.2024 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Mechanical Life 30,000 Cycles
Contact Current Rating 15A
Contact Current(AC)-Max 9A
Contact (AC) Max Rating R Load 9A@250VAC
Contact Voltage(AC)-Max 250V
Actuator Travel 4.9784 mm
Bushing Length 0.551 inch
Bushing Diameter 0.492 inch
Dimensions
Body Height 21.9964mm
Length - Termination 0.185 inch
Actuator Length 0.276 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
