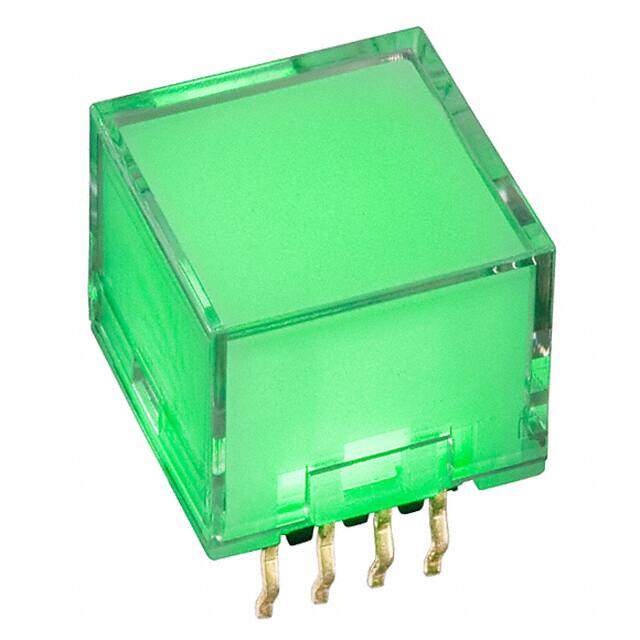

NP0115AG03LF-JB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Inventory: 8702
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2012
Series NP01
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Current Rating 14.2mA
Termination Style PC Pin
Voltage - Rated AC 28V
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 3.5VDC
Illumination Type, Color LED, Green
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 500,000 Cycles
Illumination Type LED
Illumination Color Green
Compliance
RoHS Status ROHS3 Compliant
