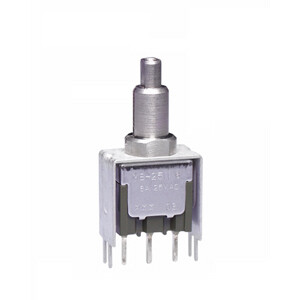

MB2511S2W13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON(ON) 3A Panel STRAIGHT W/BRKT
PDF
/
Inventory: 2135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material STAINLESS STEEL
Actuator Material BRASS
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2014
Series MB2500
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Current Rating (Amps) 3A AC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 16.3068mm
Body Breadth 7.8994 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Illumination Type Illuminated
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
PCB Hole Count 7
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Bushing Length 0.3 inch
Bushing Diameter 0.244 inch
Actuator Finish NICKEL
Dimensions
Body Height 12.7mm
Length - Termination 0.25 inch
Actuator Length 0.307 inch
Compliance
RoHS Status ROHS3 Compliant
