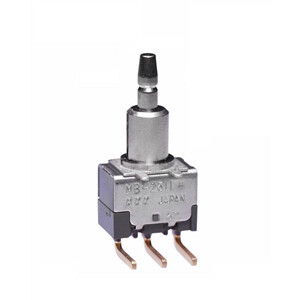

MB2511S2G30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON(ON) 0.4VA PANEL RT ANGLE
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.48532
≥1 USD $2.48532
Inventory: 955
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material STAINLESS STEEL
Actuator Material BRASS
Center Contact Material COPPER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2014
Series MB2500
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Illumination Type Illuminated
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Bushing Length 0.3 inch
Bushing Diameter 0.244 inch
Actuator Finish NICKEL
Dimensions
Body Height 14.4272mm
Length - Termination 0.169 inch
Actuator Length 0.307 inch
Compliance
RoHS Status ROHS3 Compliant
