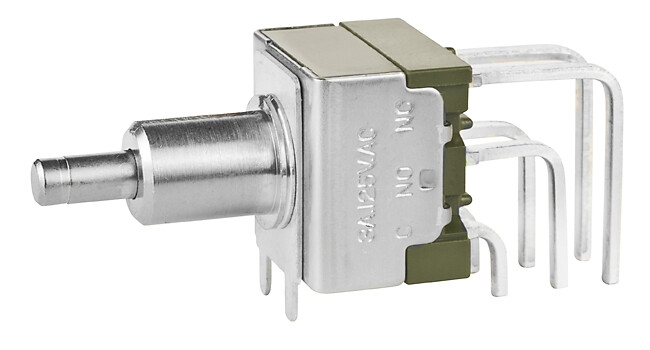

MB2461S2W40
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MINIATURE PUSHBUTTON MOMENTARY
PDF
/
Inventory: 995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.218 inch
Length - Termination 0.106 inch
Body Height 35.1536mm
Technical
Actuator Finish NICKEL
Life (Cycles) 200000 cycles
Bushing Length 0.35 inch
Solderability WAVE
Actuator Travel 0.9906 mm
Contact Function ON-(ON)
PCB Hole Count 8
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Mechanical Life 200,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 12.7 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Current Rating (Amps) 3A AC
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material BRASS
Housing Material Resin
Mounting Type Through Hole, Right Angle, Vertical
Mount Through Hole, Vertical
Contact Plating Silver
Supply Chain
Factory Lead Time 8 Weeks
