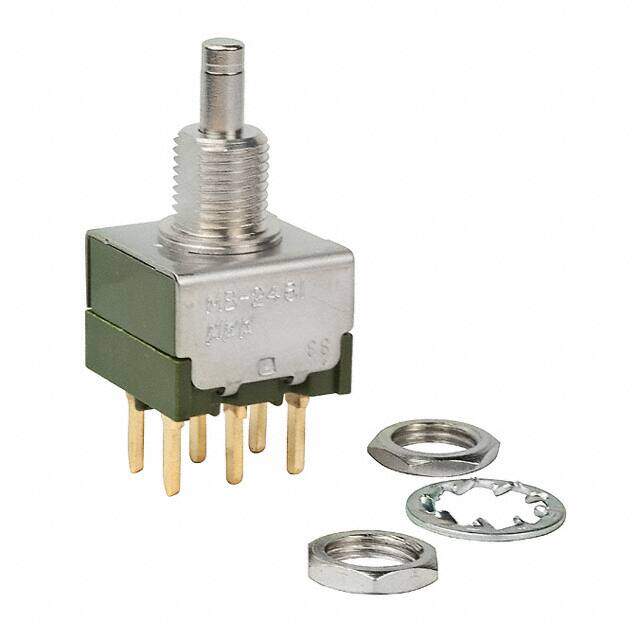

MB2461E1G03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $10.38
Unit Price: USD $10.3752
≥1 USD $10.3752
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Insulation Material DIALLYL PHTHALATE
Center Contact Plating GOLD
Center Contact Material COPPER
End Contact Plating GOLD
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2400
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Reach Compliance Code unknown
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 13.0048 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.285 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Dimensions
Body Height 9.525mm
Length - Termination 0.25 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
