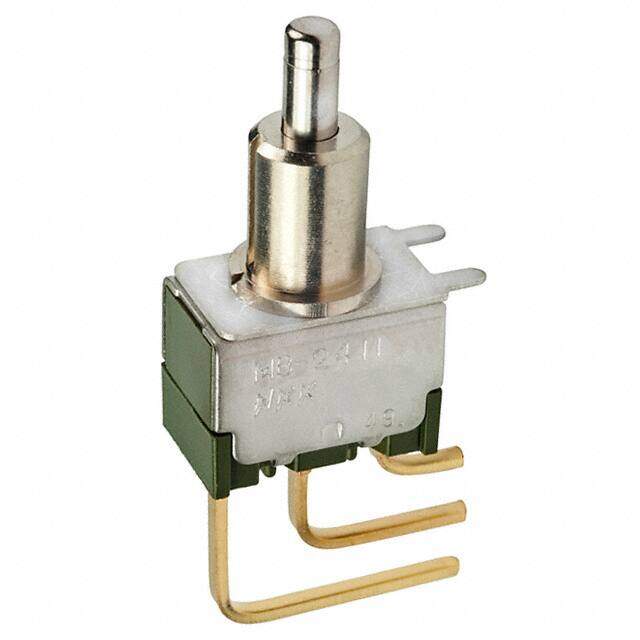

MB2411S2G40
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Inventory: 8174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material Resin
Actuator Material BRASS
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series MB2400
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 8.001 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.35 inch
Life (Cycles) 200000 cycles
Actuator Finish NICKEL
Dimensions
Body Height 35.1536mm
Length - Termination 0.106 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
