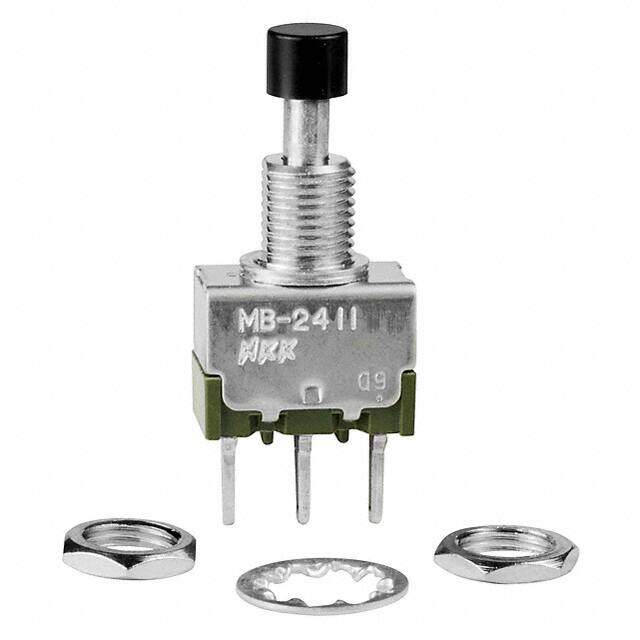

MB2411S1W03-HA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches MB24 SEIRES PUSHBUTTON TE
PDF
/
Buying Options
Total Price: USD $5.77
Unit Price: USD $5.7728
≥1 USD $5.7728
≥10 USD $5.19992
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2400
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Vertical
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.35 inch
Dimensions
Body Height 31.1912mm
Length - Termination 0.25 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
