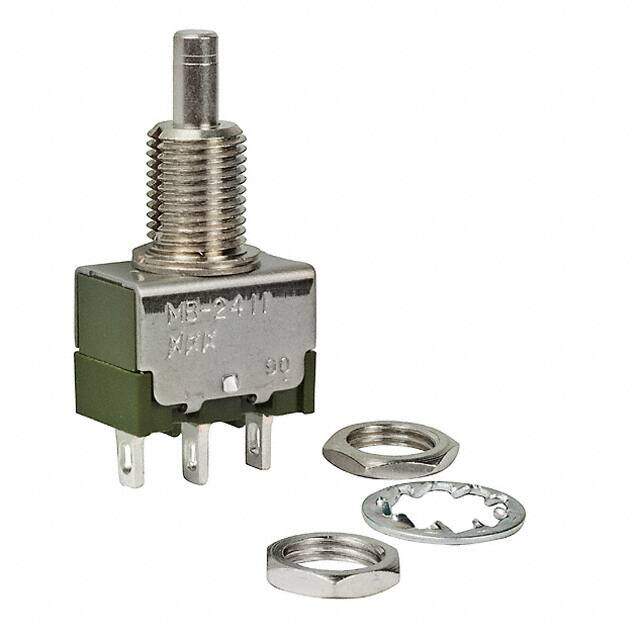

MB2411S1W01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $6.01
Unit Price: USD $6.0104
≥1 USD $6.0104
≥10 USD $5.412
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Brass
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2400
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Vertical
Depth 8mm
Reach Compliance Code unknown
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Breadth 7.8994 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 125V
Max Current Rating 3A
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact Function ON-(ON)
Solderability WAVE
Dimensions
Length 13mm
Body Height 9.525mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
