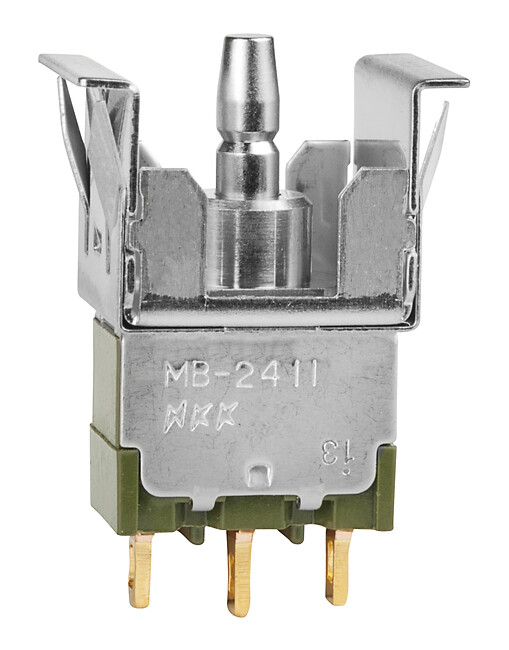

MB2411JA01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) SNAP-IN MOUNT SOLDER LUG BODY ONLY
PDF
/
Inventory: 5790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.07 inch
Length - Termination 0.157 inch
Body Height 28.194mm
Technical
Actuator Finish NICKEL
Washability SOLVENT
Solderability WAVE
Actuator Travel 4.445 mm
Contact Function ON-(ON)
PCB Hole Count 3
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Illumination Type Illuminated
Mechanical Life 200,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Panel Cutout Dimensions Rectangular - 15.00mm x 12.50mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.8994 mm
Body Length or Diameter 13.9954mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Current Rating (Amps) 3A AC
Voltage - Rated DC 28V
Power Rating 400mW
Additional Feature BLACK BEZEL
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Material SILVER
Center Contact Material SILVER ALLOY
Actuator Material BRASS
Housing Material Resin
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 12 Weeks
