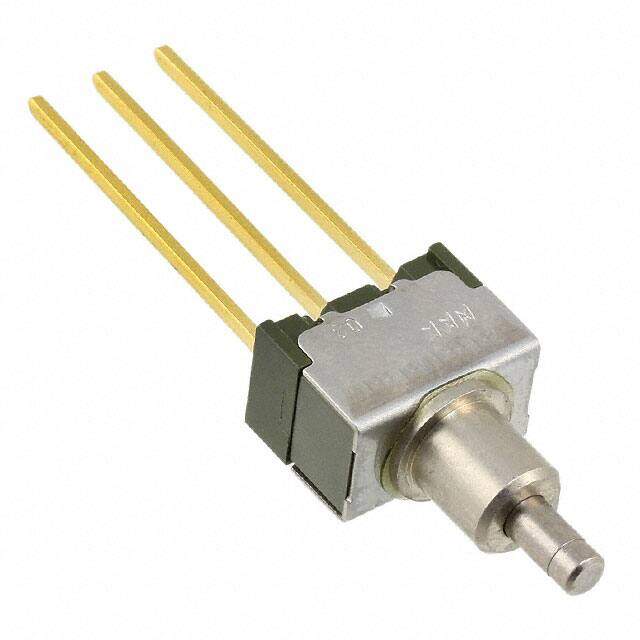

MB2411E2G07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) .285 FLATTED BSHING WIREWRAP .4VA
PDF
/
Inventory: 7678
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.218 inch
Length - Termination 0.964 inch
Body Height 9.525mm
Technical
Bushing Length 0.285 inch
Solderability WAVE
Actuator Travel 0.9906 mm
Contact Function ON-(ON)
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 28V
Termination Style Wire Wrap
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Wire Wrap
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2400
Published 2015
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Center Contact Material COPPER
Housing Material Resin
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 19 Weeks
