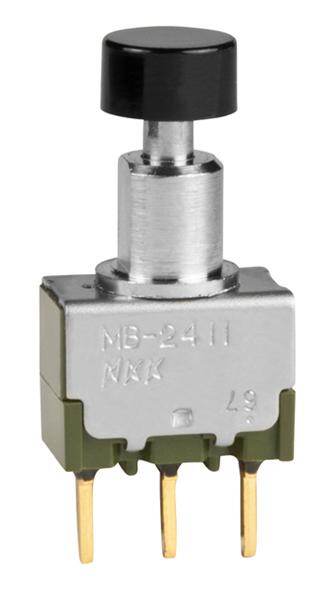

MB2411E2G03-HA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) .285 FLATTED BSHG PC .295 BLK CAP
PDF
/
Inventory: 8010
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Resin
Center Contact Material COPPER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2400
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.285 inch
Dimensions
Body Height 29.5402mm
Length - Termination 0.25 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
