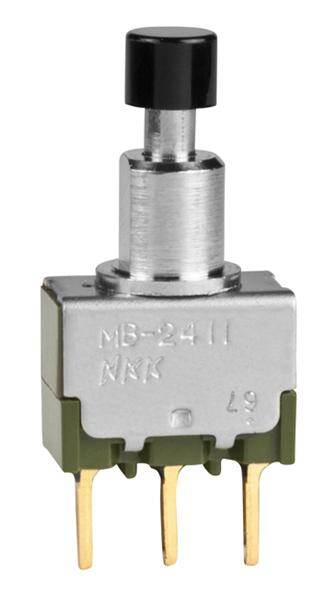

MB2411E2G03-FA
RoHS
RoHS compliant
RoHS compliantPackage 201
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON) .285 FLATTED BSHG PC .201 BLK CAP
PDF
/
Inventory: 5899
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.218 inch
Length - Termination 0.25 inch
Body Height 9.5mm
Technical
Operating Force-Max 2.45 N
Bushing Length 0.285 inch
Solderability WAVE
Actuator Travel 0.9906 mm
Contact Function ON-(ON)
Contact (DC) Max Rating R Load .014A@28VDC
Contact (AC) Max Rating R Load .014A@28VAC
Contact Current(AC)-Max 0.014A
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.014A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.9 mm
Body Length or Diameter 13mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code not_compliant
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Center Contact Material COPPER
Housing Material Resin
Package / Case 201
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
