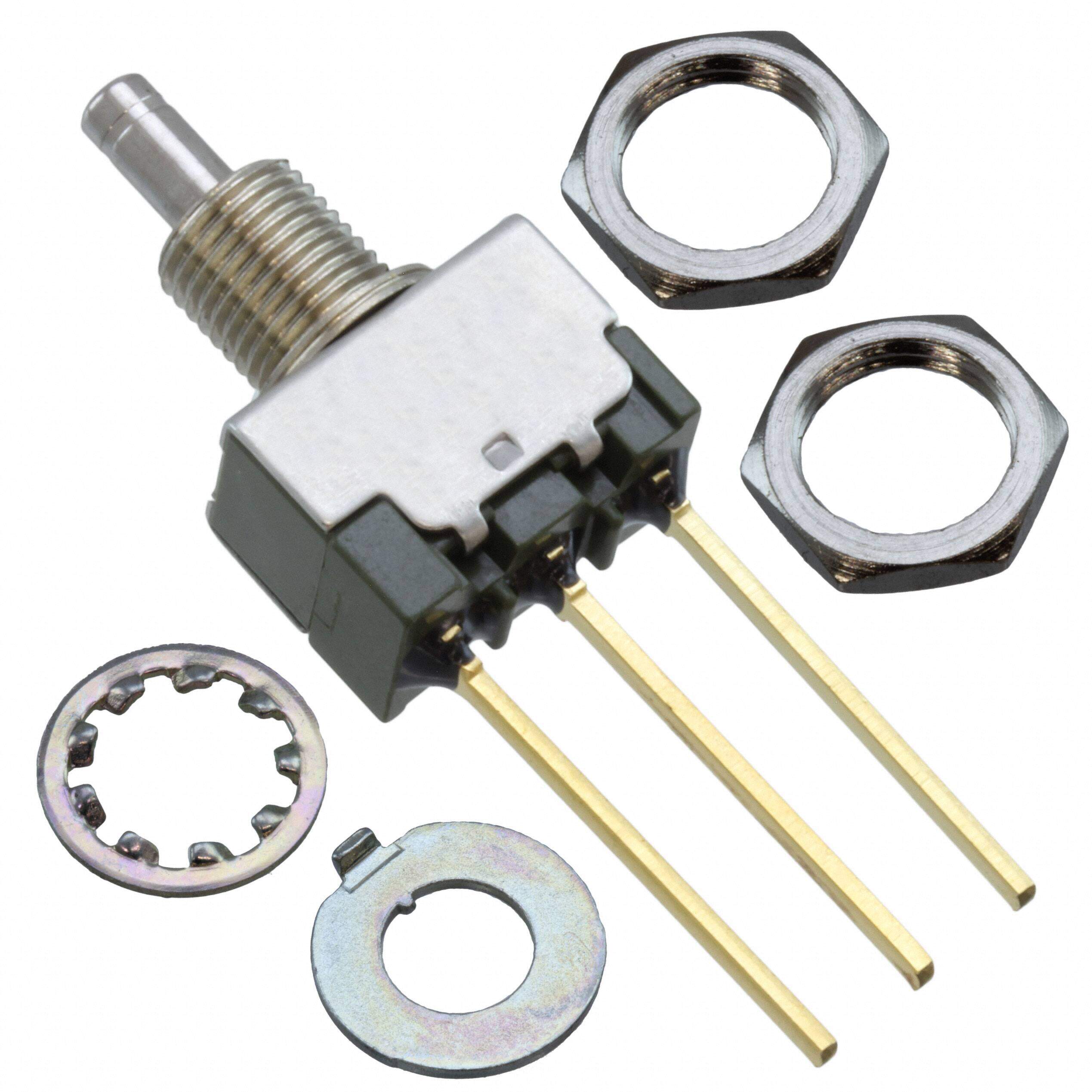

MB2411E1G06
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Series MB24 Bush Mnt Pushbutton
PDF
/
Inventory: 3949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Center Contact Material COPPER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2015
Series MB2400
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Wire Wrap
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 7.8994 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.285 inch
Dimensions
Body Height 9.525mm
Length - Termination 0.75 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
