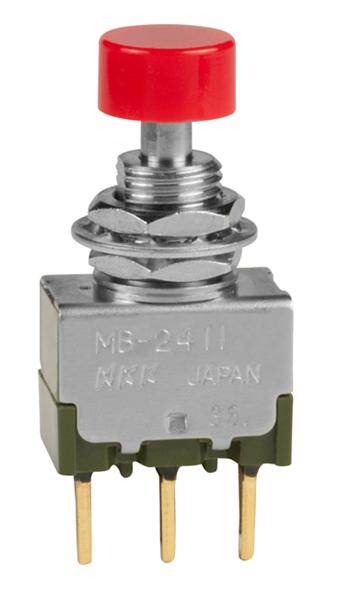

MB2411E1G03-HC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON(ON).285 FLAT BSHG PC .295 RED CAP .4VA
PDF
/
Inventory: 2186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.218 inch
Length - Termination 0.25 inch
Body Height 29.5402mm
Technical
Bushing Length 0.285 inch
Solderability WAVE
Actuator Travel 0.9906 mm
Contact Function ON-(ON)
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code not_compliant
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Center Contact Material COPPER
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
