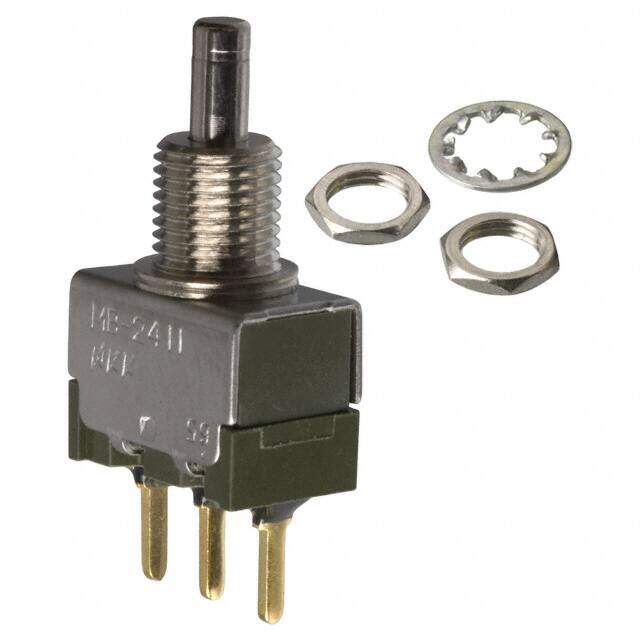

MB2411E1G03 image
Favorite
MB2411E1G03 image
Favorite

MB2411E1G03

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $6.94
Unit Price: USD $6.9432
≥1 USD $6.9432
Inventory: 21
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant

Dimensions

Body Height 9.525mm
Length 13mm

Technical

Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability WAVE
Contact Function ON-(ON)
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 7.8994 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code unknown
Depth 8mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2400
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 12 Weeks
