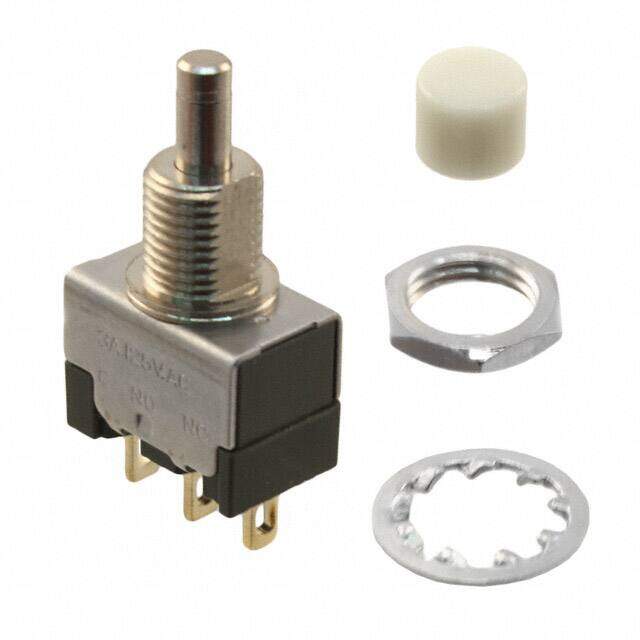

MB2411E1A01-FB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 13mm
Technical
Solderability WAVE
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Contact Current Rating 3A
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 25,000 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 125V
Color - Actuator/Cap White
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Depth 8mm
Orientation Vertical
Current Rating (Amps) 3A AC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
