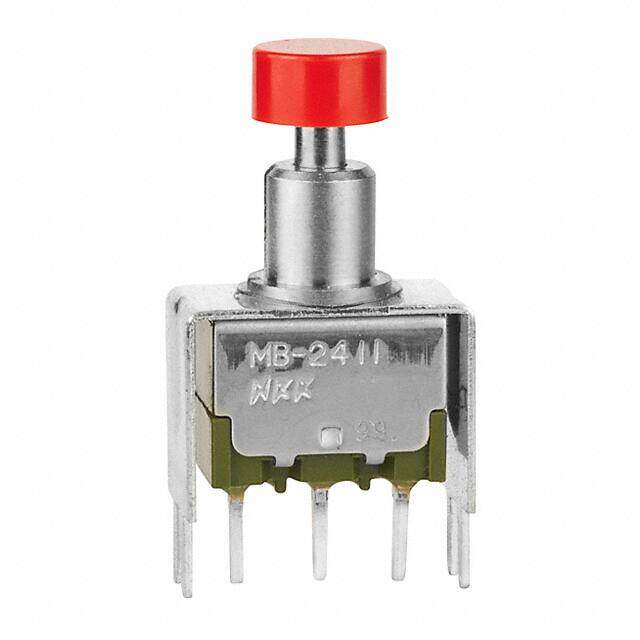

MB2411A2W13-HC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.450755
≥1 USD $1.450755
Inventory: 986
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Body Height 29.845mm
Length 16.3mm
Technical
Life (Cycles) 200000 cycles
Solderability WAVE
Contact Function ON-(ON)
PCB Hole Count 7
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Mechanical Life 200,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 3A
Max Voltage Rating (AC) 125V
Color - Actuator/Cap Red
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 8.001 mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Depth 8mm
Orientation Vertical
Current Rating (Amps) 3A AC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material Brass
Housing Material Resin
Mounting Type Through Hole
Mount Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
