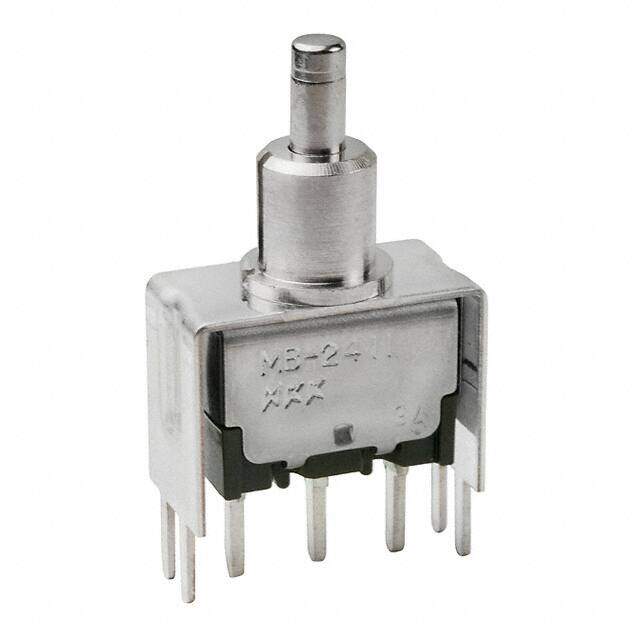

MB2411A2W13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 10024
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material DIALLYL PHTHALATE
Housing Material NYLON
Actuator Material BRASS
Center Contact Plating SILVER
Center Contact Material SILVER
Terminal Material COPPER ALLOY
End Contact Material SILVER
End Contact Plating SILVER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series MB2400
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Terminal Finish GOLD OVER NICKEL/SILVER
Current Rating (Amps) 3A AC
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 15.7988mm
Body Breadth 8.001 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
PCB Hole Count 7
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.28 inch
Bushing Diameter 0.25 inch
Actuator Finish NICKEL
Dimensions
Body Height 28.956mm
Length - Termination 0.177 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
