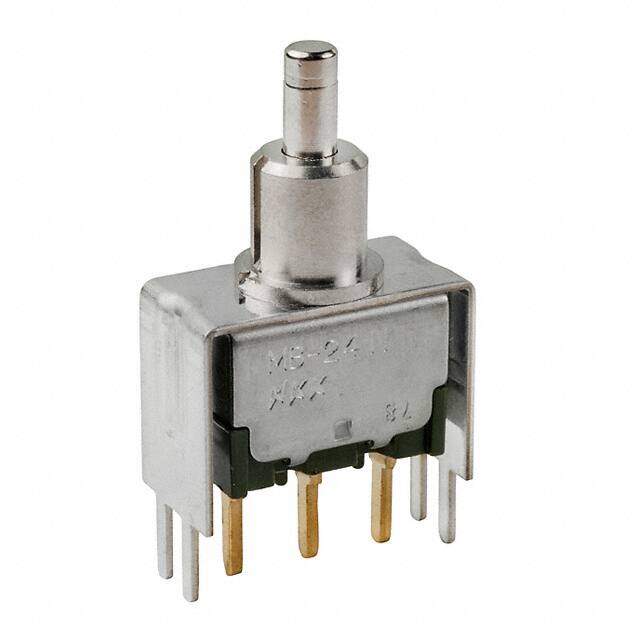

MB2411A2G13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $5.69536
≥100 USD $5.409184
≥500 USD $5.180032
≥1000 USD $5.008432
Inventory: 178
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material DIALLYL PHTHALATE
Housing Material NYLON
Actuator Material BRASS
Center Contact Plating GOLD OVER NICKEL
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2400
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Terminal Finish GOLD OVER NICKEL/SILVER
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 15.7988mm
Body Breadth 8.001 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
PCB Hole Count 7
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.28 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Diameter 0.25 inch
Actuator Finish NICKEL
Dimensions
Body Height 28.956mm
Length - Termination 0.177 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
