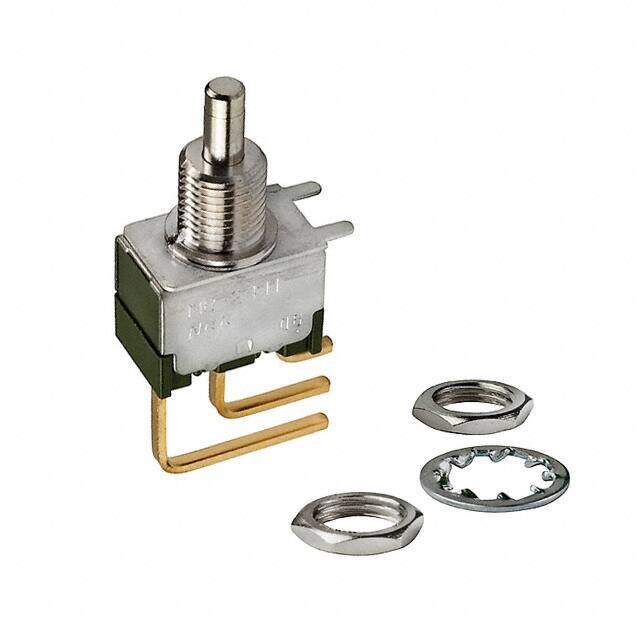

MB2411A1G40
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $3.24
Unit Price: USD $3.237611
≥1 USD $3.237611
Inventory: 986
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 33.3756mm
Length 8mm
Technical
Actuator Finish NICKEL
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability WAVE
Contact Function ON-(ON)
PCB Hole Count 5
Contact Current Rating 100mA
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 28V
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 8.001 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code not_compliant
Depth 34.42mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2400
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material Resin
Mounting Type Panel Mount, Right Angle, Vertical, Rear
Mount Panel, Vertical
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 5 Weeks
