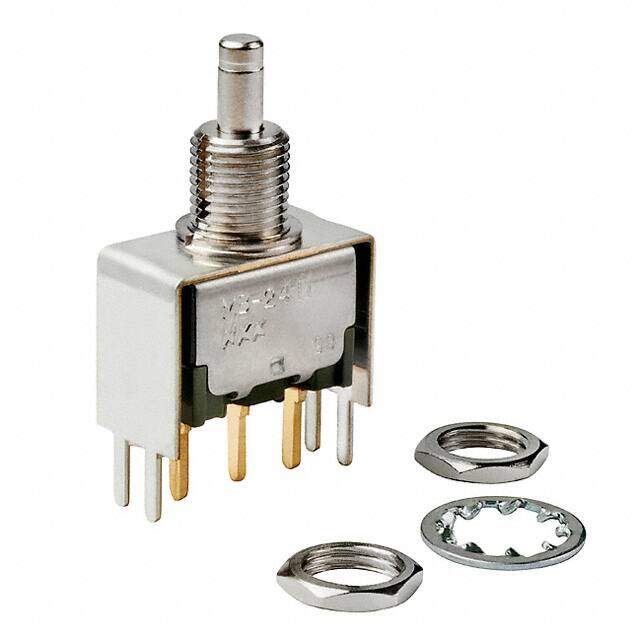

MB2411A1A13
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $8.25
Unit Price: USD $8.2544
≥1 USD $8.2544
≥10 USD $7.43512
≥100 USD $7.124128
≥500 USD $6.773712
≥1000 USD $6.501176
Inventory: 186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material BRASS
Center Contact Material SILVER
Terminal Material COPPER ALLOY
End Contact Material SILVER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series MB2400
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 3A AC
Reach Compliance Code not_compliant
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 15.7988mm
Body Breadth 8.001 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.03mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
PCB Hole Count 7
Contact Function ON-(ON)
Actuator Travel 0.9906 mm
Solderability WAVE
Bushing Length 0.28 inch
Actuator Finish NICKEL
Dimensions
Body Height 28.956mm
Length - Termination 0.177 inch
Actuator Length 0.218 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
