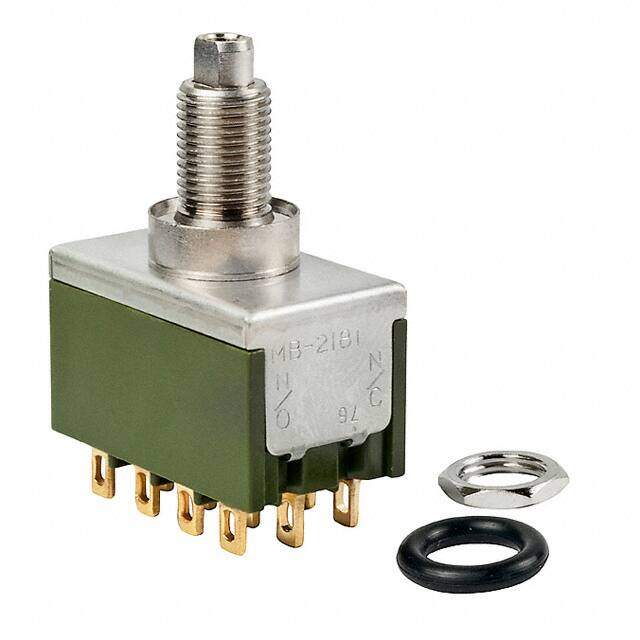

MB2181SD3G01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH 4PDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $16.41
Unit Price: USD $16.412
≥1 USD $16.412
≥10 USD $14.9028
≥100 USD $14.23312
≥500 USD $13.479664
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit 4PDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
