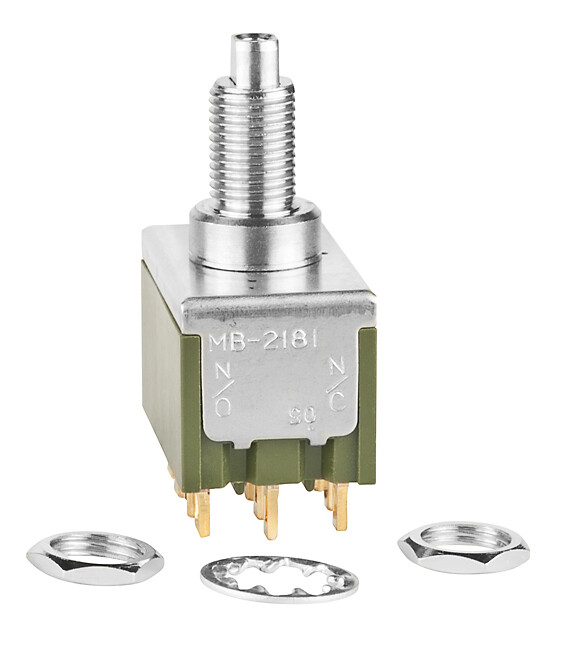

MB2181SD1G01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
MINIATURE PUSHBUTTON/MULTI-FUNCT
PDF
/
Inventory: 3019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Panel Mount, Rear
Surface Mount NO
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Center Contact Plating GOLD
Center Contact Material COPPER
End Contact Plating GOLD
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 22.3012 mm
Actuator Type Plunger for Cap
Circuit 4PDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Function ON-(ON)
Actuator Travel 1.8034 mm
Bushing Length 0.335 inch
Bushing Diameter 0.25 inch
Actuator Finish NICKEL
Dimensions
Body Height 38.8366mm
Length - Termination 0.157 inch
Actuator Length 0.118 inch
Compliance
RoHS Status ROHS3 Compliant
