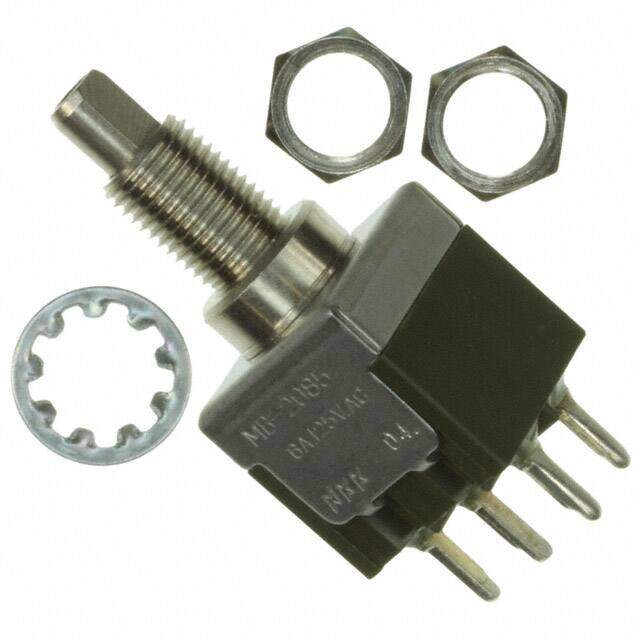

MB2085SS1W03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 4662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.472 inch
Length - Termination 0.25 inch
Body Height 44.3738mm
Technical
Bushing Diameter 0.25 inch
Bushing Length 0.335 inch
Solderability WAVE
Actuator Travel 3.8862 mm
Actuator Color BLACK
PCB Hole Count 6
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 12.7 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code not_compliant
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Material SILVER
Terminal Material COPPER ALLOY
Center Contact Material SILVER
Actuator Material POLYSTYRENE
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 19 Weeks
