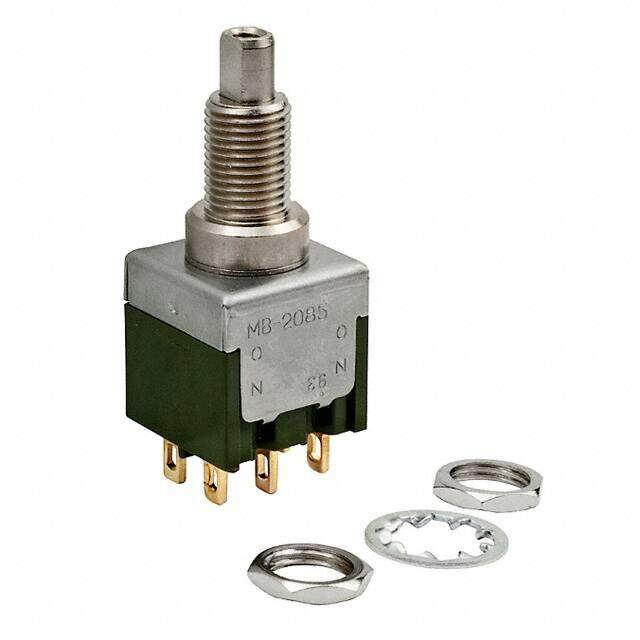

MB2085SS1G01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Inventory: 1342
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material POLYSTYRENE
Center Contact Plating GOLD OVER NICKEL
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2015
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 12.7 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Contact Timing SLOW-MAKE/-BREAK
PCB Hole Count 6
Actuator Color BLACK
Actuator Travel 3.8862 mm
Solderability WAVE
Bushing Length 0.335 inch
Bushing Diameter 0.25 inch
Dimensions
Body Height 42.0116mm
Length - Termination 0.157 inch
Actuator Length 0.472 inch
Compliance
RoHS Status ROHS3 Compliant
