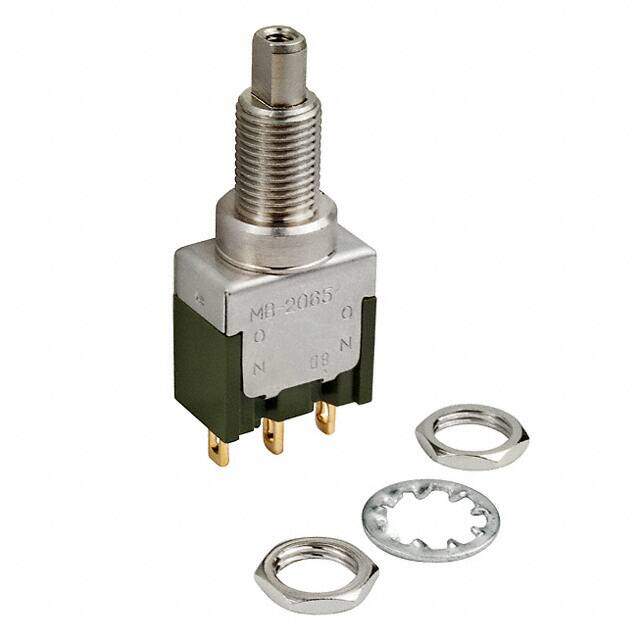

MB2065SS1G01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Inventory: 3003
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Resin
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
