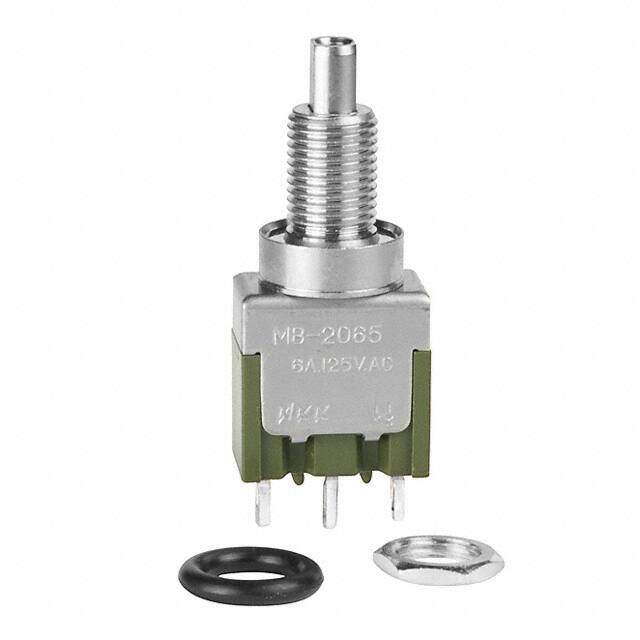

MB2065SD3W01 image
Favorite
MB2065SD3W01 image
Favorite

MB2065SD3W01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.83
Unit Price: USD $6.8288
≥1 USD $6.8288
Inventory: 14
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Contains Lead
RoHS Status ROHS3 Compliant

Dimensions

Length 13mm

Technical

Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Depth 7.9mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Actuator Material Brass
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver

Supply Chain

Factory Lead Time 8 Weeks
