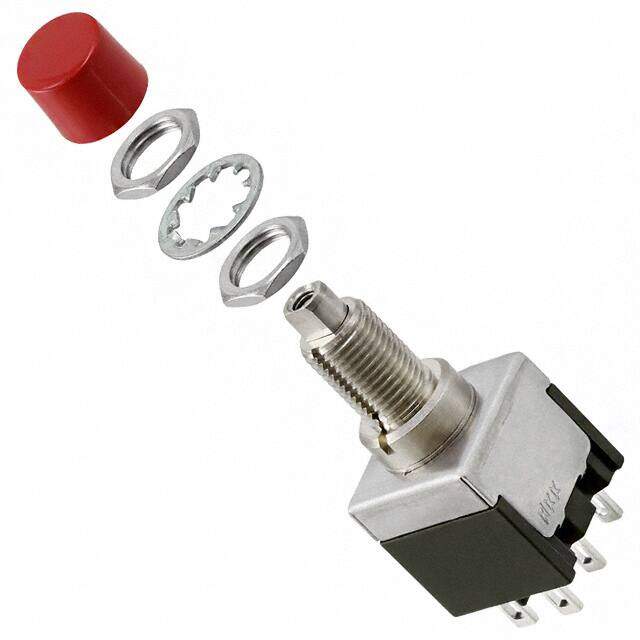

MB2061SS4W01-CC image
Favorite
MB2061SS4W01-CC image
Favorite

MB2061SS4W01-CC

NKK Switches
RoHS
RoHS RoHS compliant
Package SIL
Category Switches / Pushbutton Switches
Description Pushbutton Switches ON(ON) .335 BUSHING SOLDER .394 RED CAP
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Technical

Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Housing Material Resin
Package / Case SIL
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver

Supply Chain

Factory Lead Time 8 Weeks
