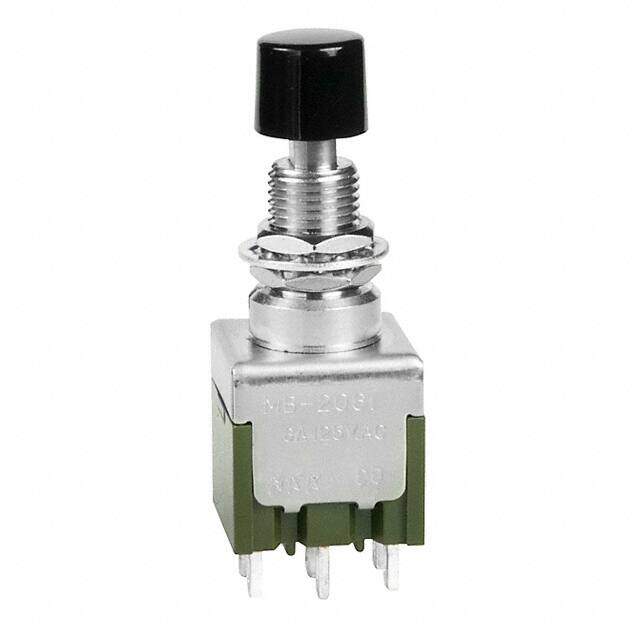

MB2061SS1W01-BA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $210
Unit Price: USD $21
≥10 USD $21
Inventory: 12
Minimum: 10
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 38.8366mm
Length 13mm
Technical
Actuator Finish NICKEL
Bushing Diameter 0.25 inch
Contact Function ON-(ON)
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code not_compliant
Depth 12.7mm
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
