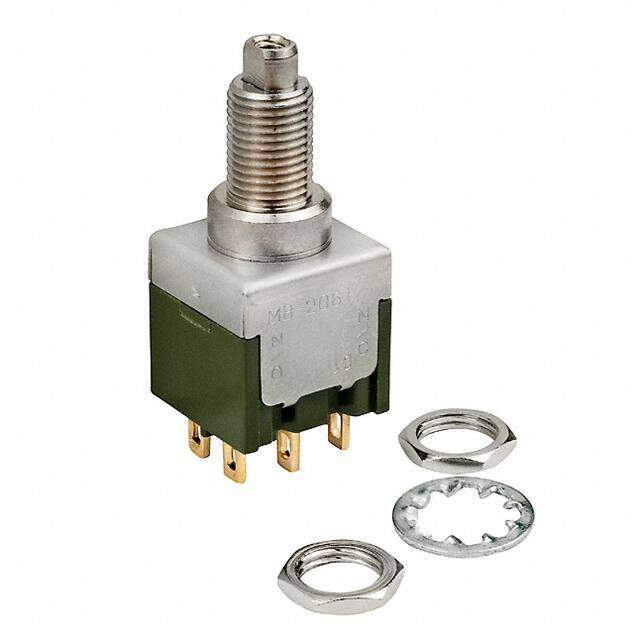

MB2061SS1G01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $9.84
Unit Price: USD $9.8384
≥1 USD $9.8384
≥10 USD $8.8616
≥100 USD $8.49024
Inventory: 138
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Brass

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2015
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Depth 12.7mm
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 100,000 Cycles
Contact Current Rating 100mA

Dimensions

Length 13mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
